Intra Touch

High Resolution Surface Finish, Form, Contour Measurement Tool

  • Overview +

    Housed in a rugged enclosure, the Intra has a proven history of maintaining accuracy of measurement without the need for constant maintenance or support. Quality, flexibility and ease-of-use have enabled the Intra Touch to become a shop-floor standard across a wealth of different industries.

    Intra Touch is a surface finish (surface roughness), form and contour measuring tool/tester and it is a perfect choice for shop floor applications. It combines industry leading specification with simplicity of operation for unbeatable practicality and value.

    High precision gauge

    This gauge leads the industry with up to 2 mm (0.08 in) of range and an outstanding range to resolution ratio of 262,144:1.

    • 1 mm Stylus - Range / Resolution
      • 1 mm / 4 nm (0.04 in / 0.16 μin)
      • 0.2 mm / 0.8 nm (0.008 in / 0.03 μin)

    • 2 mm Stylus - Range / Resolution
      • 2 mm / 8 nm (0.08 in / 0.31 μin)
      • 0.4 mm / 1.6 nm (0.016 in / 0.06 μin)

    Key features

    The 50 mm horizontal traverse is ideal for most shop floor applications, combining both accuracy and portability.

    • 0.20 µm / 20 mm straightness error - The high accuracy traverse datum makes possible skidless measurement of waviness, form and contour, even on large components.
    • 0.5 µm horizontal data spacing - Small components and features can be measured more effectively than ever before. Reduced run-up and run-down length further improve usability.

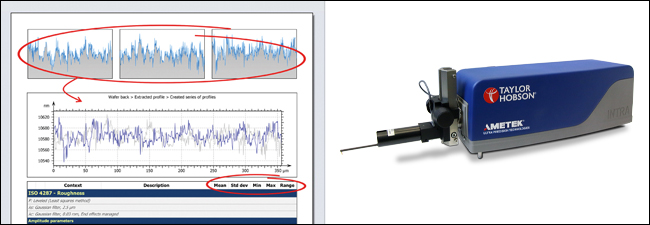

    TalyProfile 8 - Dedicated Windows® software package

    The Intra Touch includes everything needed for the assessment of surface finish. Fundamental roughness and waviness parameters are included, plus form error analysis, feature exclusion, zoom tool and analysis templates for shop floor applications.

    • Form analysis
    • Simple user interface
    • Dual profile analysis
    • Pass/Fail tolerances
    • Desktop publishing facility
