Intra Contour

Portable Surface Finish & Contour Measuring Equipment for Shop Floor Applications

  • Overview +

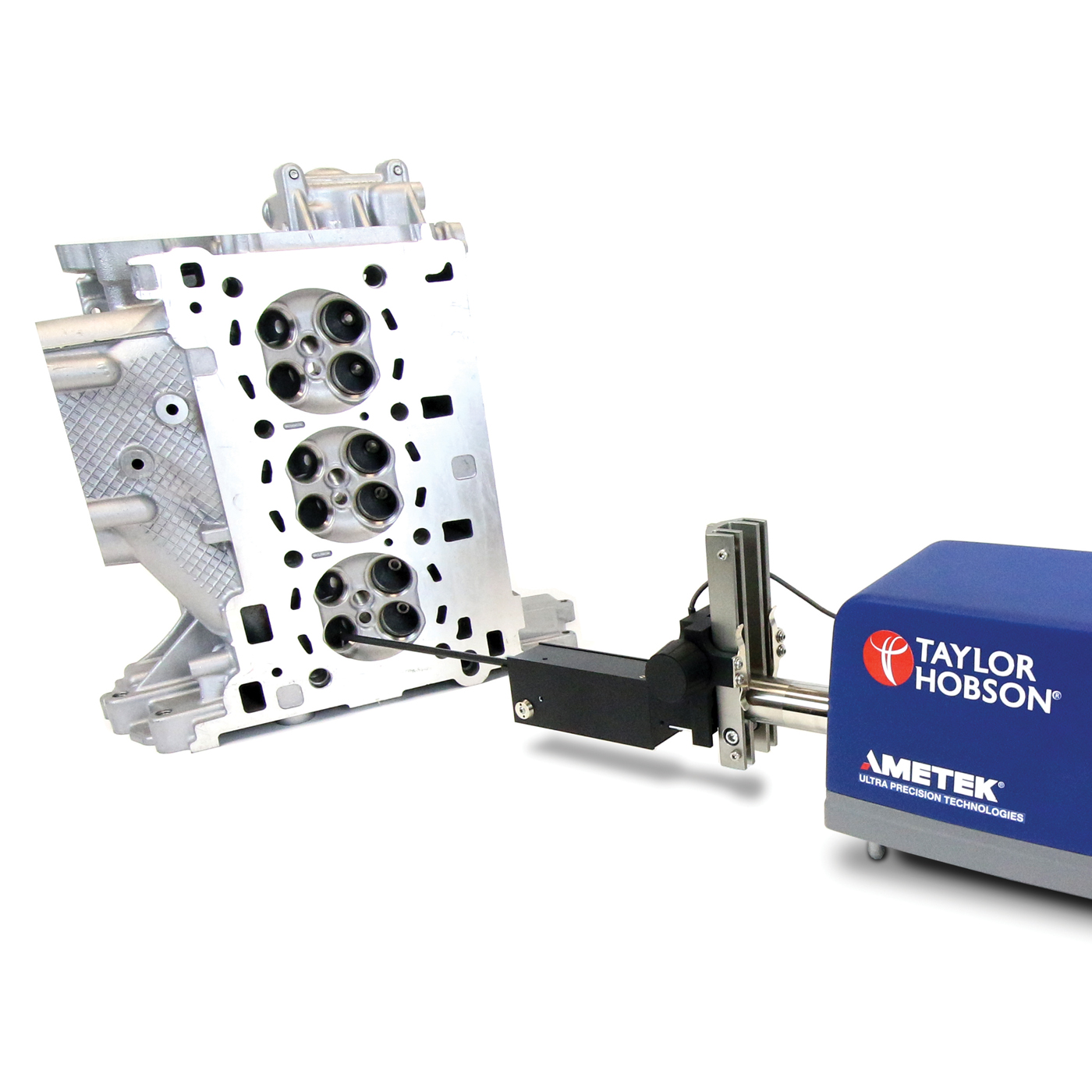

    Cost effective, self-contained, robust portable contour solution with built in 90 mm Z height adjust and optional 450 mm column to accommodate large or tall components. Simple, single user interface for calibration, surface finish, form and contour measurement and analysis.

    • Patented ball calibration
    • Precision glass scale
    • Excellent temperature stability
    • Roughness and contour on single gauge

    “Precision shop floor solution for surface finish and contour measurement”

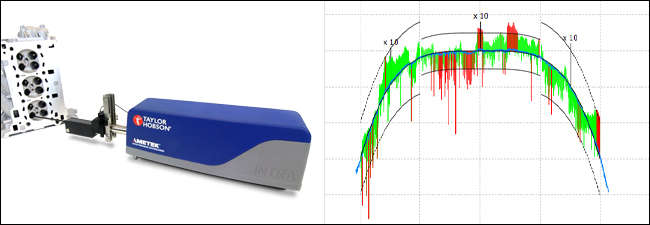

    The wide range gauge provides up to 32 mm (1.26 in) of range with up to 15 nm (4.8 μin) resolution. Suitable for form, surface roughness and contour measurements.

    32 mm Stylus - Range / resolution
    32 mm / 125 nm (1.26 in / 4.8 μin)
    6.4 mm / 25 nm (0.25 in / 1.0 μin)

    20 mm Stylus - Range / resolution
    20 mm / 76 nm (0.79 in / 3 μin)
    4 mm / 15 nm (0.16 in / 0.6 μin)

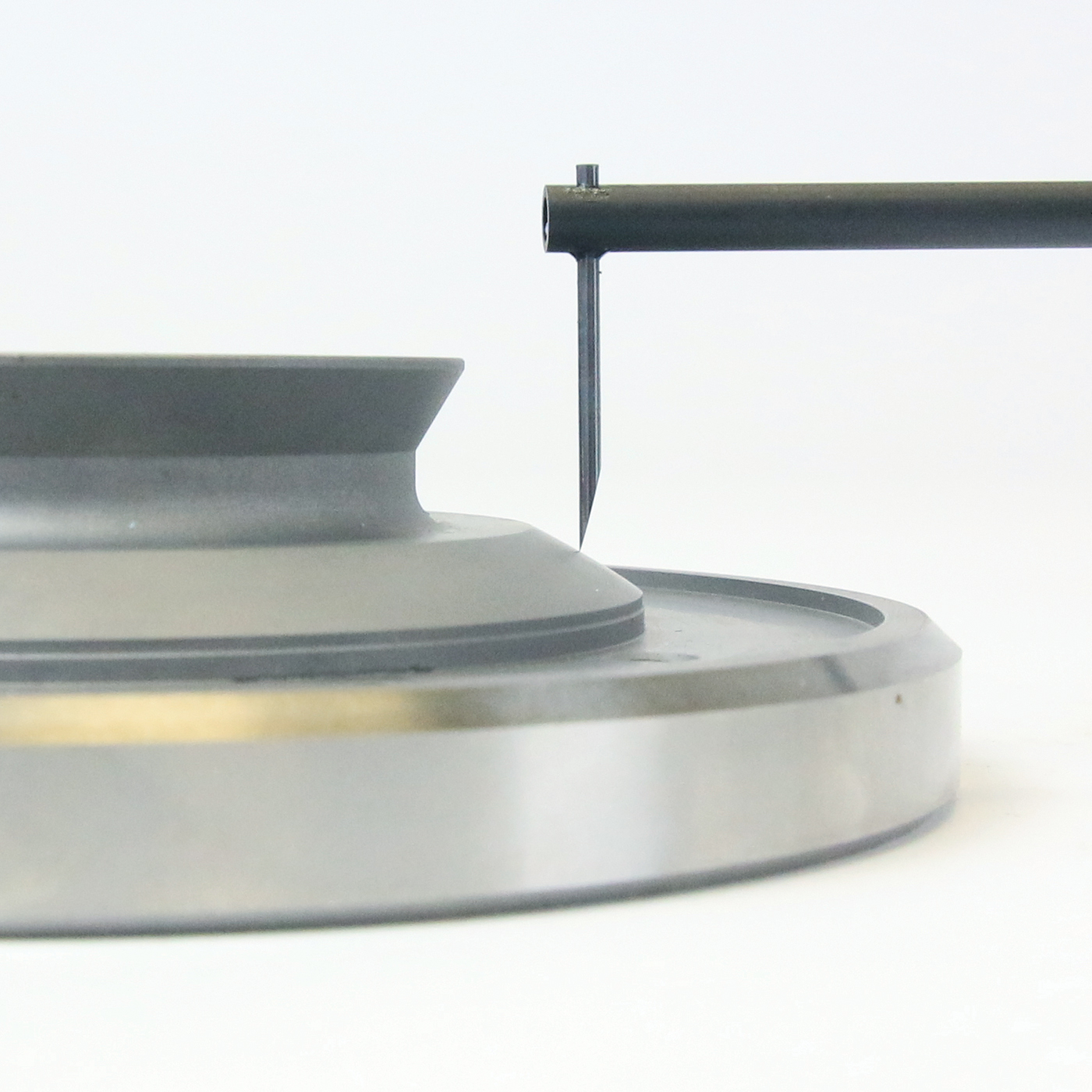

    Four stylus tip options available
    The 50mm horizontal traverse is ideal for most shop floor applications. The unit combines both accuracy and portability.

    0.20um / 20mm straightness error
    The high accuracy traverse datum makes possible skidless measurement of waviness, form and contour, even on large components.

    0.5um horizontal data spacing
    Small components and features can be measured more effectively than ever before. Reduced run-up and run-down length further improve usability.

    • 5 μm roughness tip
    • 20 µm chisel tip with 15° included angle
    • 0.5 mm (0.02 in) ball tip radius
    • 20 µm conical tip with 30° included angle
