Form Talysurf® PGI Optics

Optics Surface Finish & Form Measurement Equipment

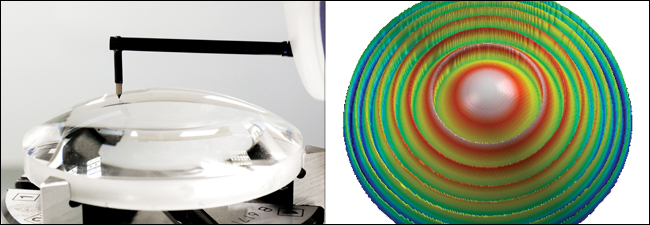

The Form Talysurf® PGI Optics contact stylus optical profilometer, measures surface finish & form of Optical components, from a large diameter lens with large SAG to small low SAG plastic lenses.

Producing high accuracy measurements on spherical, diffractive, fresnel and aspheric lenses up to 300 mm diameter (single trace) as well as more complex surfaces such as cylinders and freeforms. The system is also capable of measuring both IR (infra red), visible substrates and mirror optics.

These capabilities make the Form Talysurf® PGI Optics the goto instrument for optical manufacturers.

  • Overview +

    A fast, high accuracy measurement system for precision optics.

    Following its first release in 1984, the Form Talysurf® quickly became the number one choice for optics manufacturers measuring aspheric form error. Since then, we have installed thousands across the world, making the Form Talysurf® PGI a true industry standard.

    Our patented PGI (Phase Grating Interferometer) technology enables you to measure large sags with short length styli for the highest accuracy measurements. These Taylor Hobson manufactured styli combine very high stiffness and low force, which delivers much greater accuracy and repeatability than comparable products.

    A benchmark for accuracy and versatility

    • Easy to program, fast and accurate
    • Designed for production environments
    • Powerful analysis tools to improve your capacity and capability
    • Time-saving software functions - One-click measurements
    • Measurement of large sag lenses without compromise
    • Automated software routines for repeatable high accuracy measurements

    Automated motorised stages deliver versatility

    Increase the flexibility of the Form Talysurf® PGI Optics with the addition of motorised Y and/or Rotary stages, coupled with a precision tilt and centre stage.

    • Easy to write routines provide options for single or multiple radial trace measurements
    • Automated Astigmatic analysis – combine multiple radial trace measurements to see astigmatism
    • Ensure consistently accurate measurements with many different operators

    Dedicated optical metrology analysis

    • In-depth asphero-diffractive analysis
    • Unique solution for rapid X-offset correction

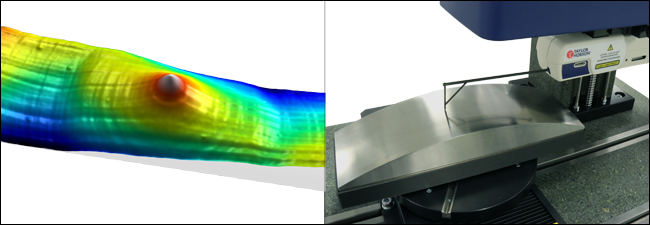

    • Large diameter optics
    • Astigmatic analysis
