Form Talysurf® PGI Matrix

Fully Automated Precision Optical Surface Form Measurement Instrument

The Form Talysurf® PGI Matrix is easy to set-up and program for the measurement and analysis of single or multiple parts. This instrument is the perfect optical surface form measurement system for fast and accurate testing of optical components up to 200 mm Diameter. A modular system, adaptable for differing budgets and technical needs.

  • Overview +

    A fully automated, fast and accurate system for batch optics measurement.

    The Form Talysurf® PGI Matrix is the perfect all-around optical profilometer/instrument for fully automated 2D and 3D form metrology of optics ranging from small, mobile phone lenses to large astronomy optics.

    Our productivity tool kit, offers a unique advantage for batch testing when measurement speed and throughput is a must. Easy set-up, test and analysis for single or multiple parts make this the perfect system for fast and accurate testing of optical components.

    Saving time and money with no loss in accuracy

    • Easy to program
    • Easy to use
    • Extremely fast
    • Fully automatic
    • Dedicated to production environments

    The Form Talysurf® PGI Matrix's enhanced capabilities and software architecture support high speed measurements of mobile device lenses, ophthalmic lenses, medical and fibre optics, high power LEDs and wafer lens arrays.

    Loading and programming one lens or a batch of hundreds is made easy and guarantees accurate results with automatic alignment, measurement and analysis.

    The Form Talysurf® PGI Matrix enables extraction of individual part profiles from a continuous measurement of an array of parts. Measure dense lens arrays quickly and accurately, with intelligent profile extraction to ensure the correct clear aperture is always analysed.

    Simple set-up, measurement and analysis of complex arrays

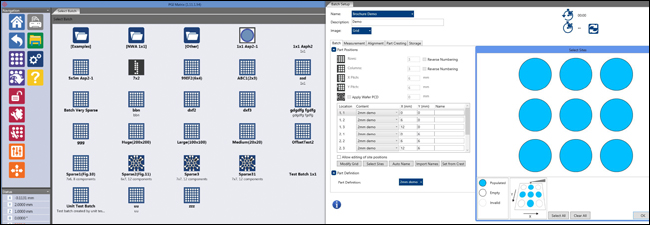

    • Define the Array Layout, selecting the part design - Low density, PCD, Wafer, etc.
    • Formats for measured and analysed data are easily chosen, with option to store results in location of choice
    • Select location for storing the results
    • Select ‘Batch’ to measure

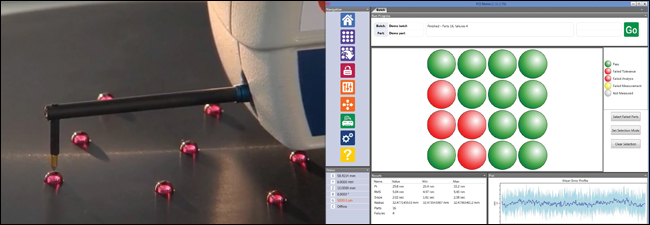

    • Live feedback on measurement pass / fail with clear indication
    • Automated analysis shows batch results statistics - Allows individual part results to be explored
    • Define complete measurement offline and transfer to the instrument for the measurement
    • Completed measurements can be reviewed and re-analysed offline by simply transferring the results folder
