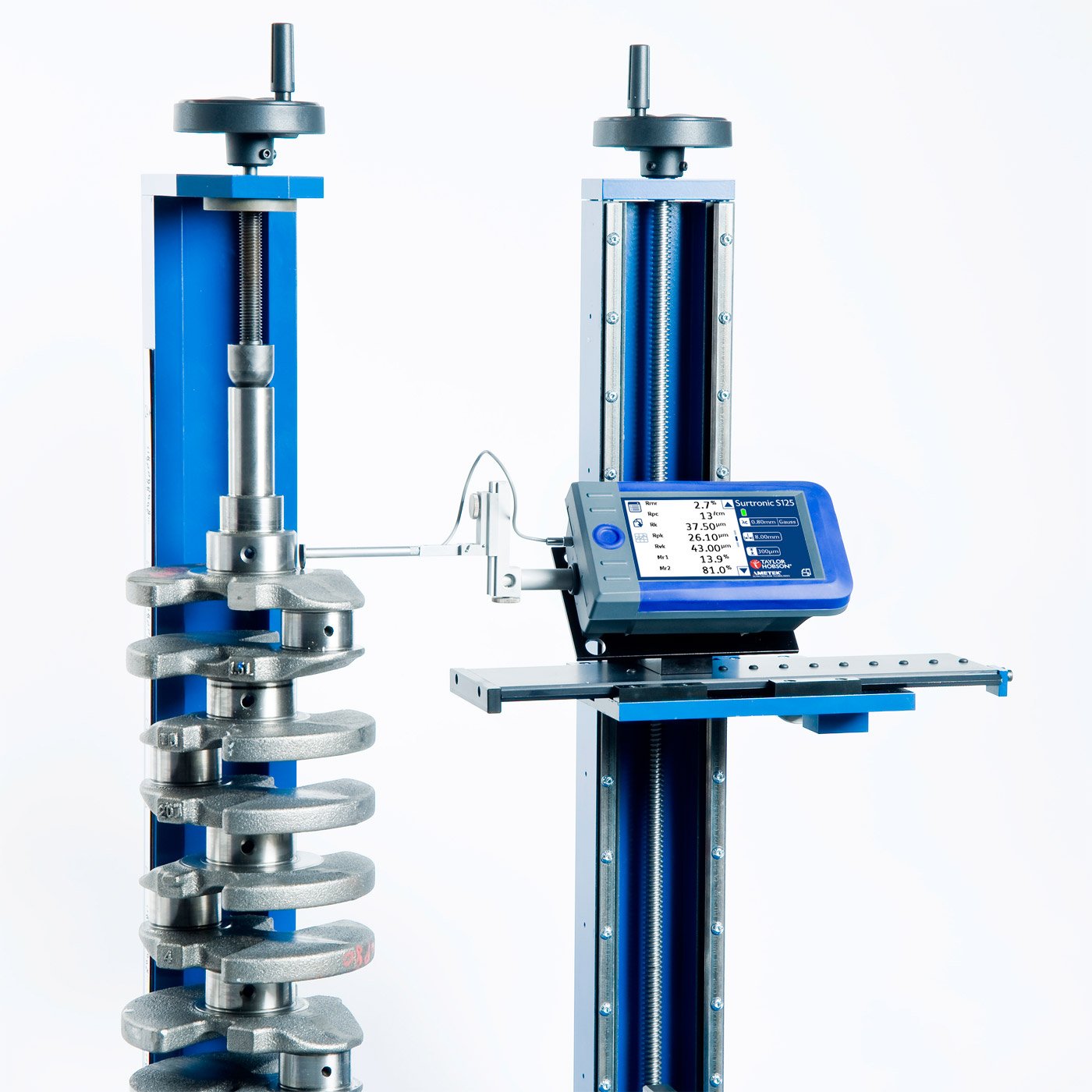

Portable Surface Finish & Roughness Measurement Tester

Surtronic S-100 Series is a range of robust, portable handheld surface finish, roughness measurement testers/meters, simply press the measurement button and in a few seconds a full set of traceable measurement results including a detailed profile graph will be displayed. Surtronic S-100 stylus surface roughness tester/meter is fast & reliable equipment, able to measure any surface any height without compromise, even curved. The gauge range for Surtronic S-128 is 200 µm / 100 µm / 10 µm and S-116 is 400 µm / 100 µm / 10 µm. Surtronic 25 is replaced with Surtronic S-100 Series.

Surtronic S-100 Surface Roughness Tester

Surtronic S-100 Portable Surface Roughness Tester

Surtronic S-100 Surface Finish Roughness Tester

Surtronic s-100 surface roughness measurement equipment

The newest addition to the Surtronic family, the Surtronic S-100 series is a range of portable surface roughness testers that builds on the capabilities of the Surtronic 25.

Designed for shop floor, industrial and inspection room applications, the S-100 series offers a versatile solution for all your surface finish measurement requirements. Application specific accessories can be tailored with a variety of fixtures for your specific need.

The Surtronic S-Series digital, stylus surface finish(roughness) testers come in two variants: the S-116 is our standard offering, whilst the S-128 offers extended measurement range and analysis capability.

Surtronic surface finish/roughness products ideal for a wide range of industries including precision bearings, process control, automotive, heavy industry, flooring, and aerospace engineering and many more. The S-100 series has the key attributes that are most important for quality control in today’s precision industries; Taylor Hobson’s Talyprofile software package is designed for Roughness measurement instruments.

Surtronic S-100 Series Surface Roughness Tester Features

Advanced roughness parameter options to suit your application
USB Connectivity for charging, USB stick storage or printing
Measure any surface, any height with the included stylus lift
Anti-slip V-feet mean the system can be used on flat or curved surfaces
Built to last, by design – Impact resistant rubberised mouldings
2000 measurements from a single charge.
Taylor Hobson provides full certification for artefacts and instruments in our purpose built ISO graded clean room UKAS facility.
