Form Talysurf® PGI NOVUS

Advanced Surface Finish, Contour, 3D & Diameter Measuring Equipment

The Form Talysurf® PGI NOVUS is the most advanced system for surface finish, contour, 3D and diameter measurement, delivering unique benefits for both design and production. This instrument is designed with class leading 20 mm gauge range with 0.2nm resolution with the capability to measure surface finish (roughness, form, waviness) diameter, included angle, in a normal and inverted direction with the same speed and accuracy.

This system is an ideal solution for bearings, injectors and precision component manufacturers. Get instant measurement analysis feedback like surface finish, contour and topography with Metrology 4.0 software.

  • Overview +

    At the heart of the Form Talysurf® PGI NOVUS is a ground-breaking dual bias gauge. It is an advanced surface finish, 3D, diameter and contour measuring equipment.

    The Form Talysurf® PGI NOVUS surface finish measuring instrument delivers 20 mm gauge range with a standard 100 mm stylus. The PGI NOVUS gauge has been designed to provide the user with greater measurement flexibility.

    Small, medium and large complex parts can be measured on a single system. Buy with confidence and future-proof your investment. Using a 200 mm stylus provides an industry-leading 40 mm gauge range with full surface finish capability.

    Key features

    • Automated force control
    • Automatic lift-lower
    • Diameter & angle capability
    • Metrology 4.0 Software with Virtual display, Variable programming and Part Co-ordinate system (PCS)
    • Gauge resolution down to 0.2 nm
    • Gauge range up to 20 mm

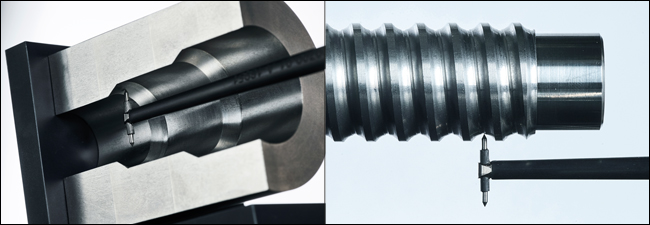

    • Ball screw axial measurement - both sides for PCD
    • Bearings - spherical, roller and four-point contact
    • Gears - involute form
    • Fuel injectors - straightness and seat angle
    • Multi-part measurement - using a single program

    Diameter & angle capability with reverse bias gauge

    The dual bias NOVUS gauge combined with the new high precision column delivers unparalleled diameter measurements to sub-micron accuracies. This capability is critical to manufacturers of components such as bearings, injectors and ball screws.

    The above attributes coupled with the instrument's ability to measure internal or external angle make the Form Talysurf® PGI NOVUS a truly versatile system.

    Powered by Metrology 4.0 Software

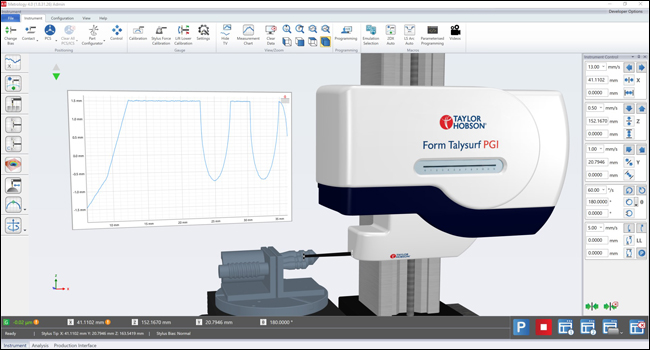

    Metrology 4.0 delivers a simple, intuitive interface with virtual display and real time control. The state-of-the-art point and move axis control function (SMART Move) delivers precise positioning and measurement with ease.

    Cutting-edge technology

    Taylor Hobson’s advanced software enables dimensioning in accordance with part drawings and provides an exact reflection of the Part Co-ordinate System (PCS) delivering the final link in the manufacturing loop.

    Metrology 4.0 software is easy to use with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function delivers precise positioning and accurate measurement.

    SMART Move and CAD models

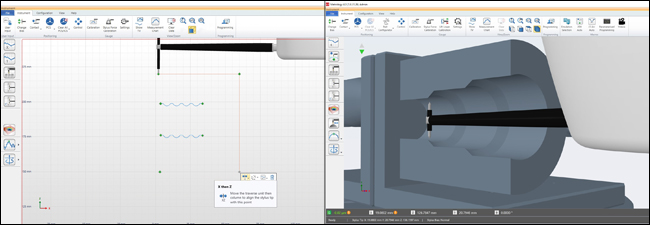

    A powerful utility that enables online and offline programming around a CAD model. Features include a stylus tip “flight path” enabling collision detection.

    The Metrology 4.0 visual display is an exact replica of the real instrument; seeing is believing. Measurements are made between pre-defined points or from points fed back from the analysis process. Improved accuracy and repeatability can be achieved via the unique feedback process.

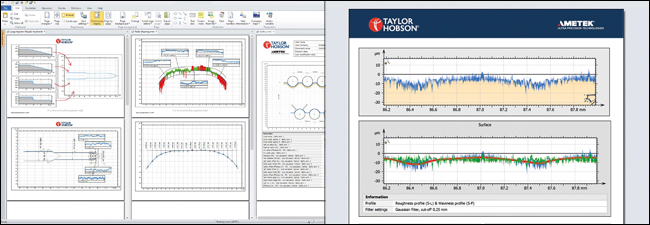

    Powerful Desktop Publishing

    The desktop publishing features are powerful and simple to use allowing customisation of result layouts and ensuring a more professional and personalised look to your brand.

    • Generate interactive reports and multi-page documents
    • Multiple documents can be displayed on screen, to compare results
    • Build a professional report and include corporate logos

    One measurement, multiple results, instant feedback

    • Surface Finish - High resolution gauges with low noise enable roughness, waviness and form in one measurement

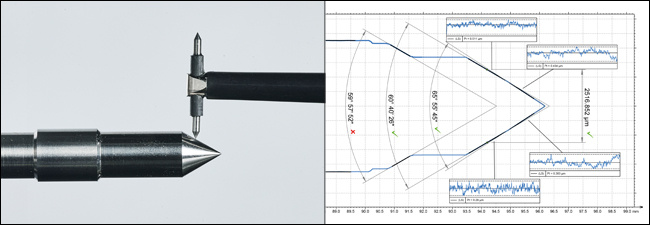

    • Contour - Our patented calibration technique enables measurement of radii, angle, height, length, distance and more
    • Topography - Using an optional motorized Y-stage and Metrology 4.0 software, transform your conventional 2D measurements into 3D

    Metrology 4.0
