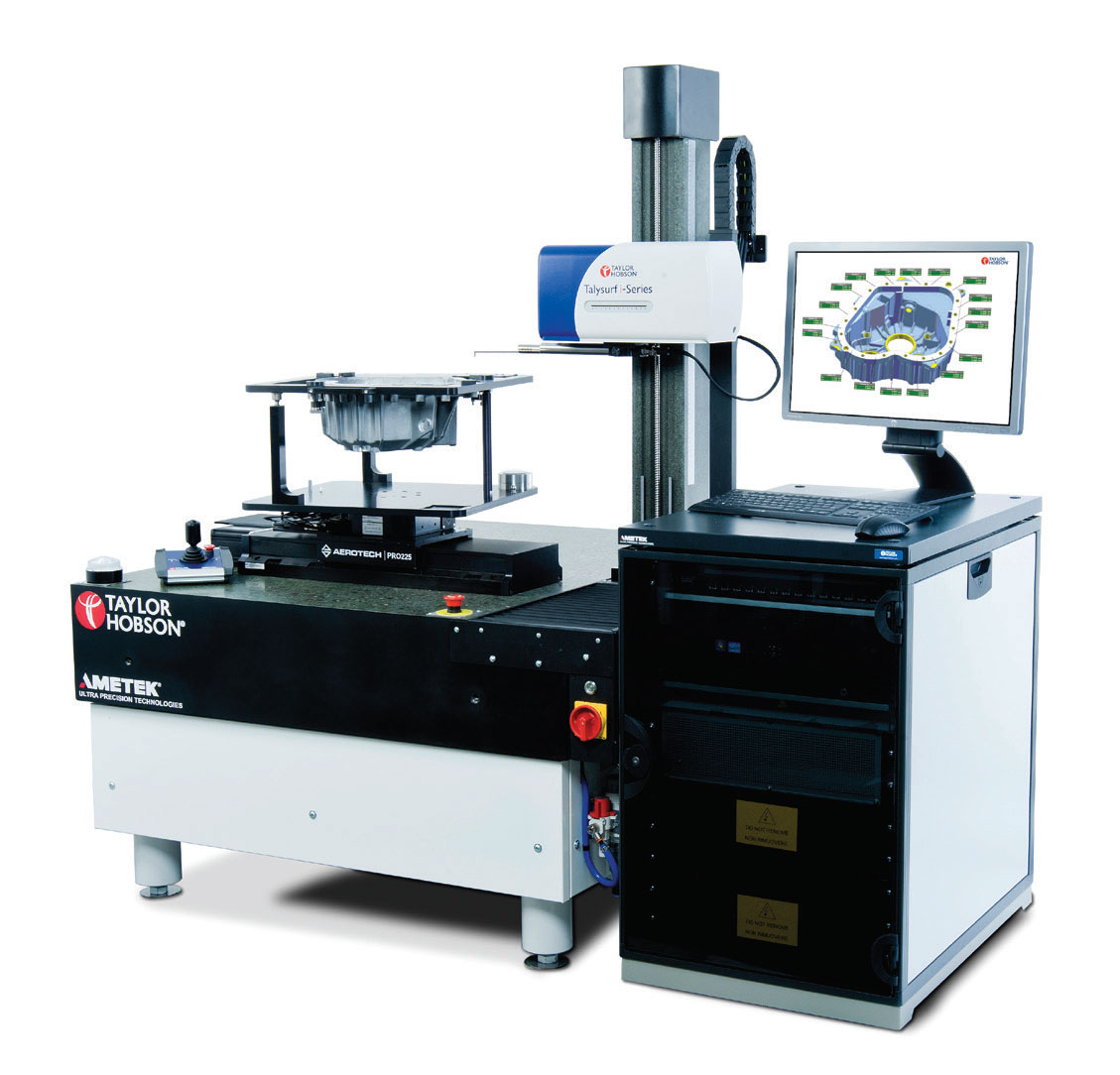

Form Talysurf® CNC Series

Surface Finish & Contour Measuring Instrument

The Form Talysurf CNC Series is an automated surface finish (roughness, waviness), form, contour measurement instrument designed for the shop floor environment. This equipment delivers 5 mm gauge range and 0.4 nm resolution and unique temperature compensation as standard. Use our optional TalyMap® 3D software to transform your conventional 2D measurements into 3D analysis results.

Available Form Talysurf CNC Series options are: Form Talysurf CNC 2000 Series are suitable for large engine heads and blocks & Form Talysurf CNC 1000 Series are suitable for large crankshafts or transmission housings.

  • Overview +


    Taylor Hobson Form Talysurf CNC Series is a versatile, high range, high resolution, automated surface finish, form and contour measurement instrument. While the use of highly automated manufacturing systems in automotive production is well established, quality control has remained a manual process. The arrival of the Form Talysurf® CNC Series for automated quality control will change that.

    The system can be programmed to your individual requirements for analysis of crankshafts, heads, blocks, gear box casings and much more.

    The Form Talysurf® CNC Series is supplied with Taylor Hobson's Q-Link production interface, software that meets the Industry 4.0 philosophy. Q-Link is designed for shop floor environments and provides direct communication with SPC software which delivers feedback to your manufacturing process.

    Form Talysurf CNC Series System Benefits and Features:

    • Cycle times are greatly reduced

            - Up to 8 axes of motion

    • High accuracy gauge

           - World-leading 5 mm gauge with 0.4 nm resolution

    • Temperature compensation

           - Ensures consistent system performance and high measurement integrity, regardless of environmental effects

    • Fully automated measurement

           - With evaluation and SPC analysis

    • Simple user friendly interface

           - I deal for programming and analysis

    • Customisable fixtures and workholdings

      - Part identification using RFID and barcodes

    • 1.5 metre granite base for workpieces

            - Up to 400 mm in size and weight up to 150 kg*

    • Robust measurement solution
      - Suitable for all environments
