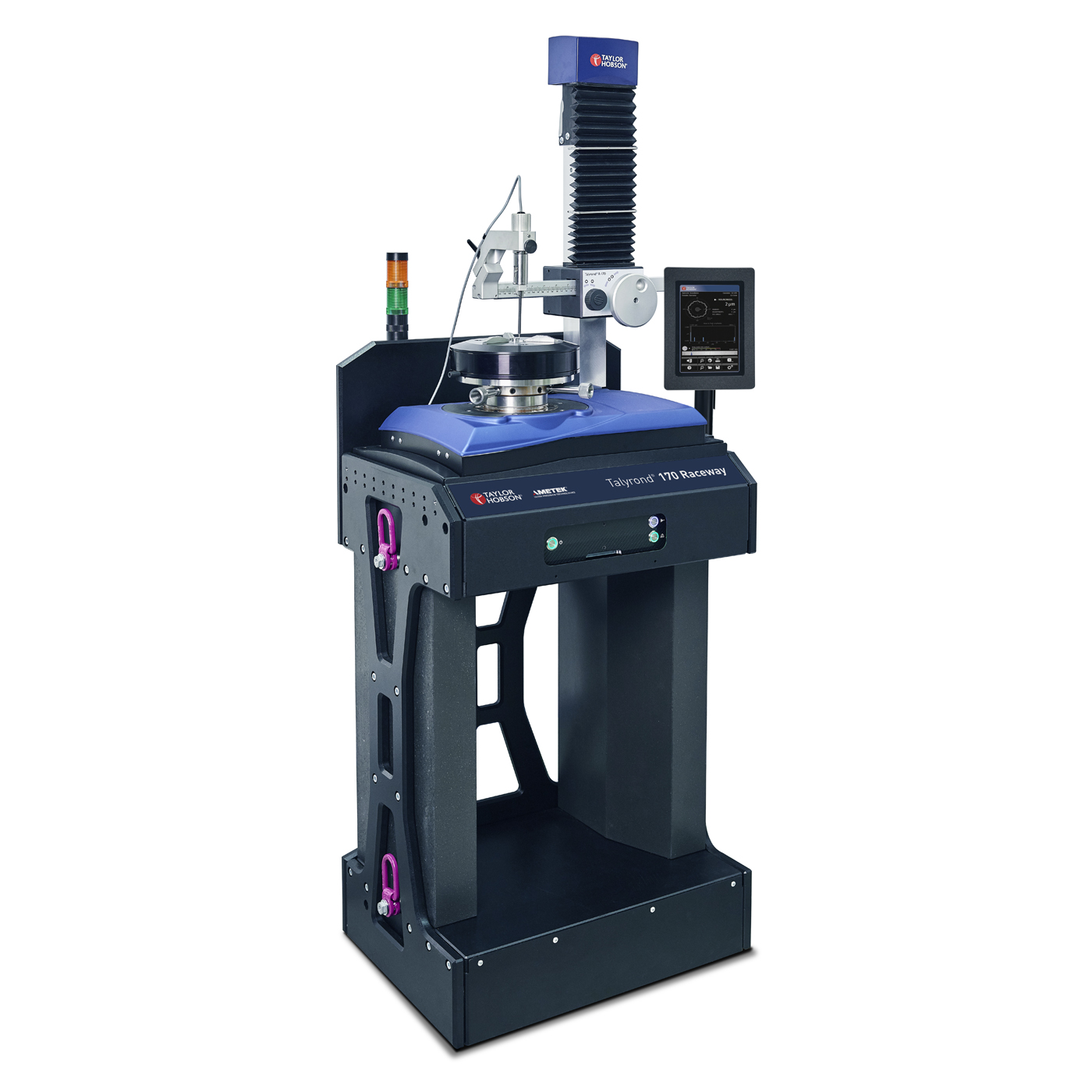

Talyrond® 170 Raceway

High Speed Roundness Measuring Machine for Bearing Raceway Measurements

  • Overview +

    Rapid, high precision measurement for the bearings industry.

    The Talyrond® 170 Raceway system has been designed specifically to address the extreme measurement demands of high volume bearing production.

    Working closely with bearings manufacturers, Taylor Hobson has focused on the key attributes that are most important for quality control including very high accuracy, throughput, robustness and ease of use. The Talyrond® 170 Raceway system also includes fully active anti-vibration and active levelling to ensure the best possible result even when measuring directly on the manufacturing shop floor.

    Key features

    • Precise results - ±15 nm spindle accuracy
    • Speed - Measure 3 parts/min. including set-up
    • Robust and reliable - Suitable for 24/7 operation
    • Ease of use - Touchscreen software

    Powered by New Windows® 10 tablet

    The Windows® 10 tablet allows for wireless data transfer to networks. All measurement data can be saved with filetypes including PDF and PNG by using the easy to use software interface. The Windows® 10 tablet with Gorilla Glass 3.0, is highly resistant to scratches and sharp contact damage. It provides up to a 4x improvement in scratch resistance when compared to other aluminosilicate glasses.

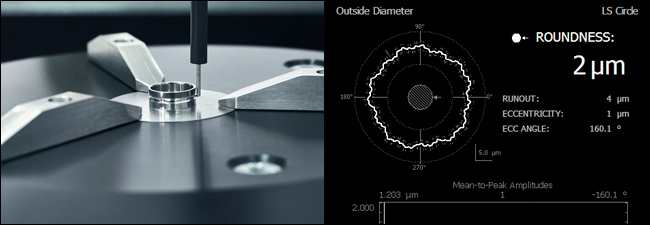

    What can it measure?

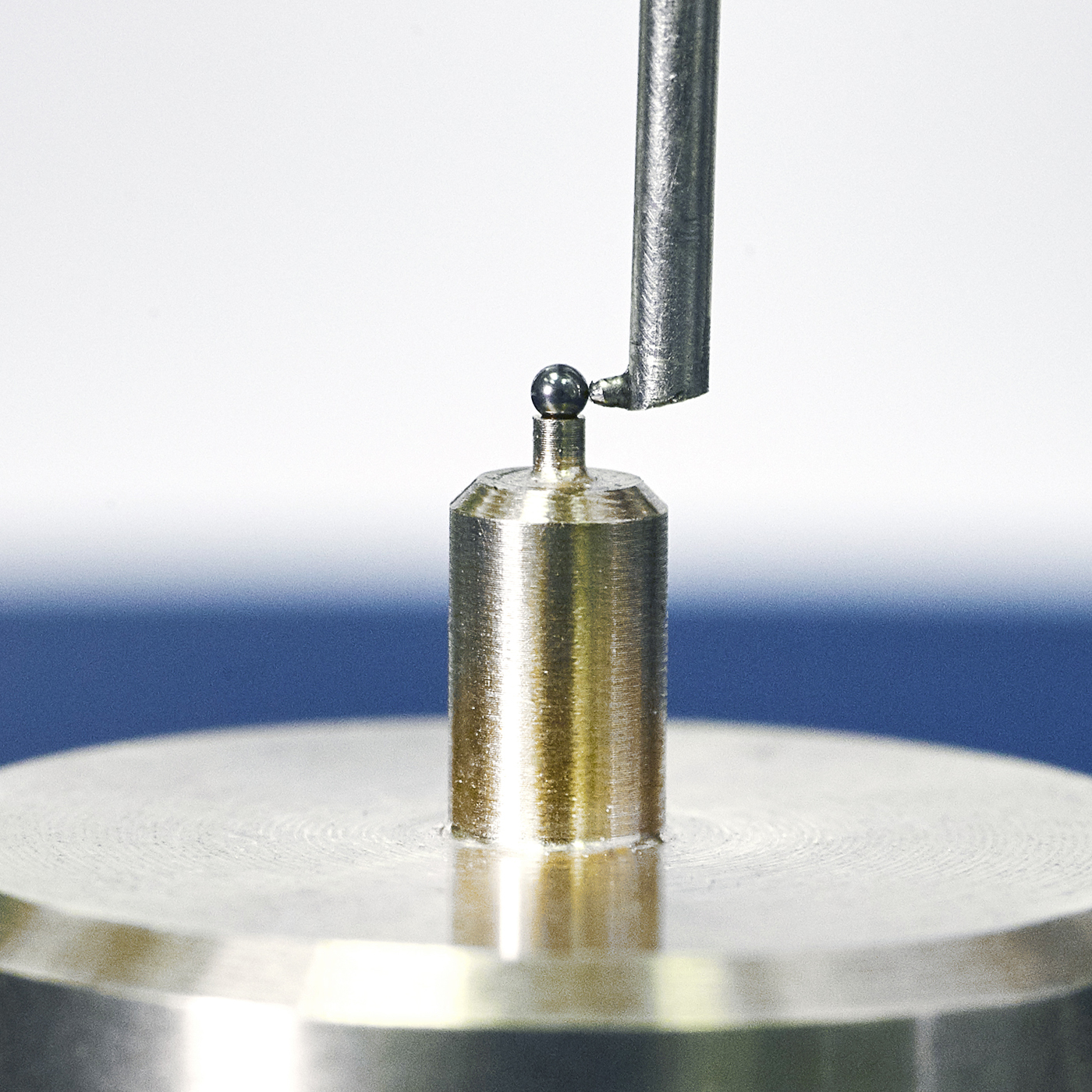

    The Talyrond® 170 Raceway system is designed specifically for bearing raceway and precision ball measurements. It can measure both internal and external races down to a minimum size of 1.6 mm diameter and maximum of 90 mm.

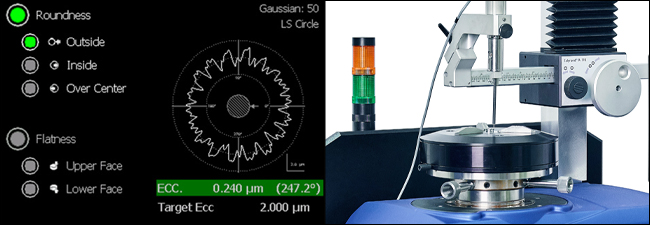

    Patented RapidCentre

    RapidCentre avoids valuable cycle time being lost on manual part centring. On most parts precision results are achieved following a very simple and fast loading procedure. Now roundness measurements can be made in less than 30 seconds including part loading, centring, measurement, analysis and results display!
