The Talyrond® 595 UHPR PRO is the number one choice for for measurement laboratories around the world. Talyrond® instruments are used by National Physics Laboratories and Calibration Institutes throughout Europe, America and Asia.
A world leader in speed, position control and accuracy, the Talyrond® 595 UHPR PRO has the lowest noise floor of any instrument of its kind.
These characteristics combined with the systems unique gauge capability enable measurement of roundness, roughness and contour from a single metrology platform.
Powered by Metrology 4.0, easy to use software with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function delivers precise positioning and accurate measurement.
Key features
- High precision air bearing spindle ± 0.005 µm
- Gauge resolution 0.3 nm
- Harmonic analysis to traceable standards
- Removable indexing table
- Fully Automated arm attitude/orientation mechanism
- Automatic Centre and level with arm follow mode
Applications
- Ball bearings
- Roller bearings
- Calibration artefacts
- Cylinders
- Ball screws
- Fuel injectors
Unrivalled repeatability

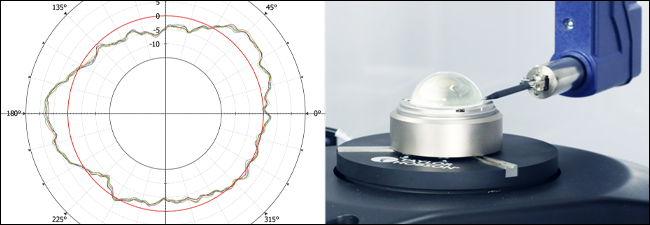

Plotting multiple measurements on the same axis clearly shows the excellent repeatability of the instrument.
In the case above, the variation in RONt is less than 3 nm and the standard deviation below the nanometre level.

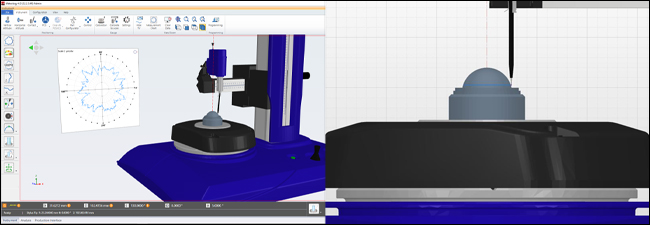

SMART Move and CAD models
A powerful utility that enables online and offline programming around a CAD model. Features include a stylus tip “flight path” enabling collision detection.

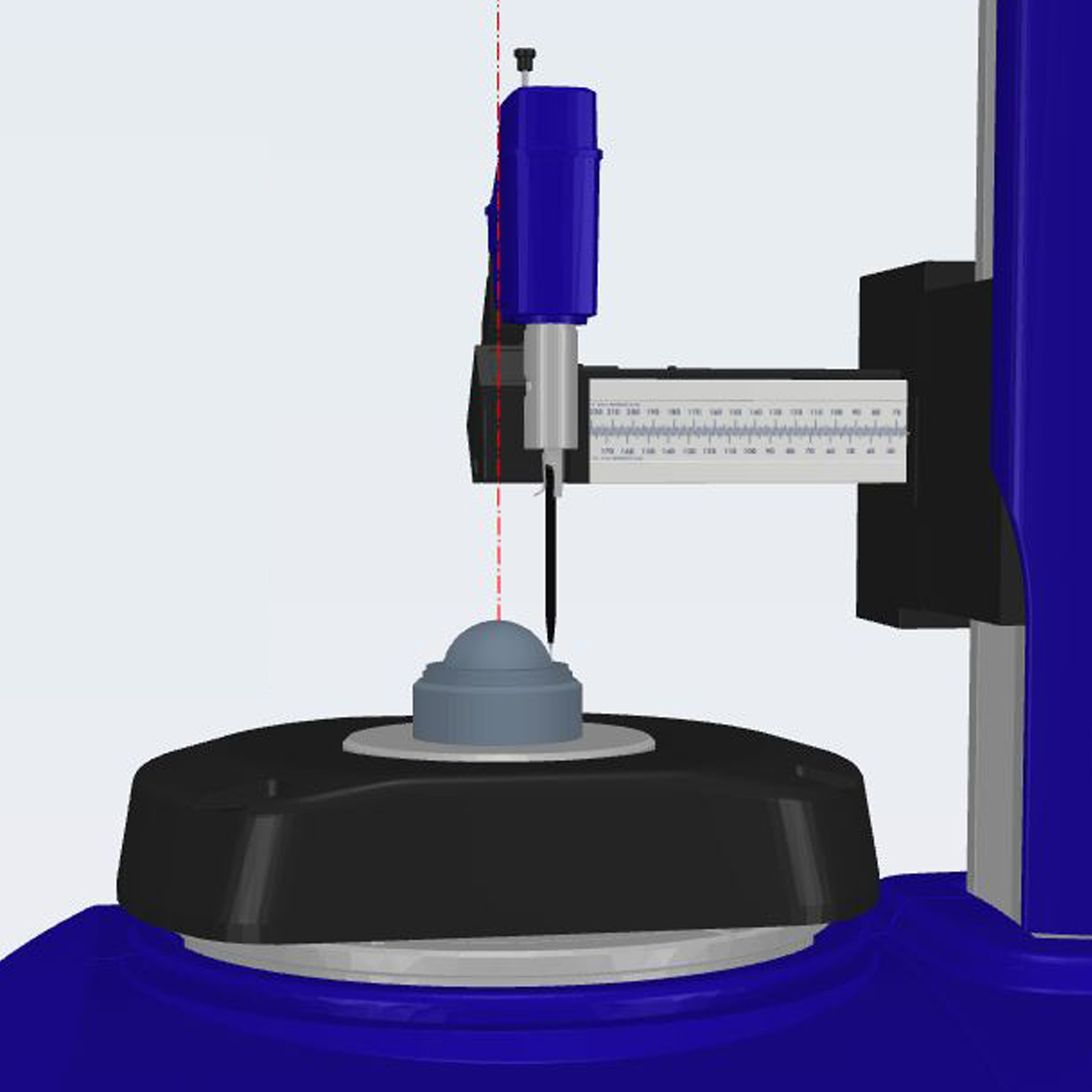

The Metrology 4.0 visual display is an exact replica of the real instrument; seeing is believing. Measurements are made between pre-defined points or from points fed back from the analysis process. Improved accuracy and repeatability can be achieved via the unique feedback process.
Centre and Level - Completed in less than half the time
Another first is the unique three-point centre and levelling method which provides a stable and high-load capability.
Precise positional control combines with predefined alignment positions to produce the fastest centre and levelling device on the market.
Powerful Desktop Publishing
The desktop publishing features are powerful and simple to use allowing customisation of result layouts and ensuring a more professional and personalised look to your brand.
- Generate interactive reports and multi-page documents
- Multiple documents can be displayed on screen, to compare results
- Build a professional report and include corporate logos
One software platform, multiple disciplines
- Roundness - Frictionless high precision air bearing spindle provides world leading roundness results
- Surface Finish - High resolution gauge and low axis noise enables linear or circumferential surface roughness
- Contour - Our patented calibration technique enables measurement of radii, angle, height, length, distance and more
- Topography - A fully automated routine enabling 3D topography of cylindrical surfaces
