Talyrond® 500 HS PRO

The Talyrond® 500 HS PRO is a Multi-Part, Fully Automated Roundness, Cylindricity and Straightness Measurement System

  • Overview +


    The Talyrond® 500 HS PRO roundness tester/instrument is a world leader in speed, position control and accuracy and has the lowest noise floor of any instrument of its kind. These characteristics combined with the systems unique gauge capability enable measurement of roundness, roughness and contour from a single metrology platform.


    Key features

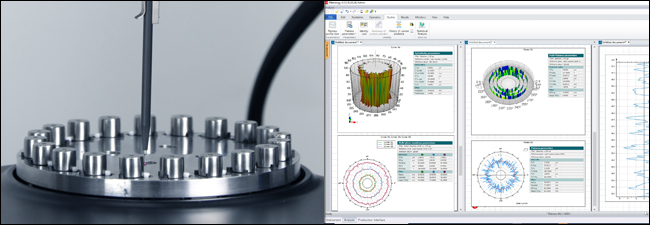

    • Complete automation of multi-part measurement, provides cost effective, high volume throughput
    • Measurement of small and delicate parts with vacuum chuck
    • Reproducible measurement results
    • Metrology 4.0 Production Interface
    • Full traceability to international standards

    Applications

    The Talyrond® 500 HS PRO is the number one choice for manufactures of precision components including bearings, lens moulds, fuel injectors and much more...

    • Bearings - Harmonic analysis, tilt and form error to axis, roundness
    • Medical - Roundness, form and radius analysis
    • Fuel injectors - Angle and distance, surface finish, Roundness
    • Lens moulds - Surface finish, parallelism and cylindricity
    • Camera phone lens holders - Parallelism and roundness


    Powered by Metrology 4.0 Software

    The advancement in metrology software design that the market has been waiting for...


    Talyrond 585H PRO Metrology 4.0 User Interface

    Cutting-edge technology

    Taylor Hobson’s advanced software enables dimensioning in accordance with part drawings and provides an exact reflection of the Part Co-ordinate System (PCS) delivering the final link in the manufacturing loop.

    Metrology 4.0 software is easy to use with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function delivers precise positioning and accurate measurement.


    watch-video_01

    SMART Move and CAD models

    A powerful utility that enables online and offline programming around a CAD model. Features include a stylus tip “flight path” enabling collision detection.

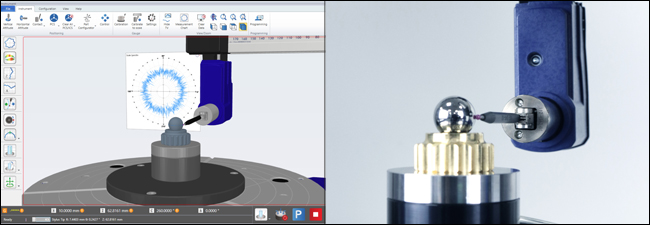

    The Metrology 4.0 visual display is an exact replica of the real instrument; seeing is believing. Measurements are made between pre-defined points or from points fed back from the analysis process. Improved accuracy and repeatability can be achieved via the unique feedback process.



    Centre and Level - Completed in less than half the time

    Another first is the unique three-point centre and levelling method which provides a stable and high-load capability.

    Precise positional control combines with predefined alignment positions to produce the fastest centre and levelling device on the market.


    Talyrond 585H PRO Desktop Publishing

    Powerful Desktop Publishing

    The desktop publishing features are powerful and simple to use allowing customisation of result layouts and ensuring a more professional and personalised look to your brand.

    • Generate interactive reports and multi-page documents
    • Multiple documents can be displayed on screen, to compare results
    • Build a professional report and include corporate logos


    One software platform, multiple disciplines

    • Roundness - Frictionless high precision air bearing spindle provides world leading roundness results
    • Surface Finish - High resolution gauge and low axis noise enables linear or circumferential surface roughness
    • Contour - Our patented calibration technique enables measurement of radii, angle, height, length, distance and more
    • Topography - A fully automated routine enabling 3D topography of cylindrical surfaces



    Metrology 4.0
