Talyrond® 585H PRO

The Talyrond® 585H PRO is a Fully Automated Roundness, Cylindricity and Straightness Measurement System

  • Overview +


    The Talyrond® 585H PRO is a fully automated roundness/cylindricity instrument that is unsurpassed in accuracy and reliability, with 6 versions to choose from offering the right balance of automation and capacity for virtually every application. State of the art electronics have allowed full control of all axes with fast and accurate modes allowing the right combination of measurement and movement speed for the most challenging of components.

    Taylor Hobson's patented arm orientation provides full automation in almost any attitude making it the most versatile of instruments and an industry benchmark in roundness instrumentation.


    Key features

    • Fully Automated arm attitude/orientation mechanism
    • Automated Gauge calibration
    • Automatic Centre and level with arm follow mode
    • High precision air bearing spindle ± 0.015 µm
    • Gauge resolution 0.3 nm
    • 300 mm, 500 mm, 1000 mm or 1200 mm Vertical straightness unit

    Applications

    • Ball screw - full length of the contact point of the ball screw or lead screw
    • Camshafts - comparison to a DXF or lift data.

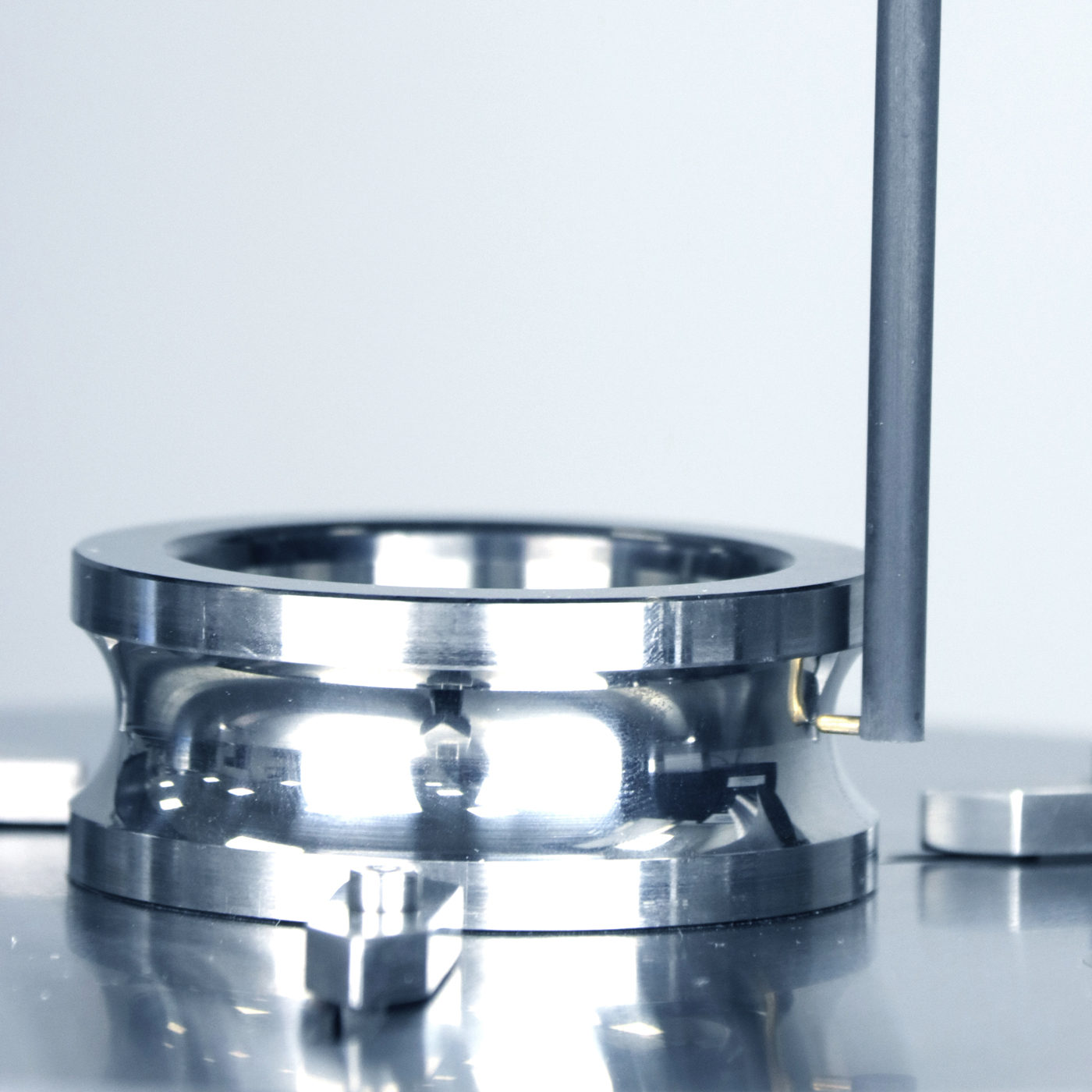

    • Bearing races - harmonic analysis
    • Crankshafts - Roundness, straightness, cylindricity, parallelism, twist and surface texture
    • Roller bearings - roughness, form, roundness and part alignment
    • Fluid dynamic bearings - roundness, topography and roughness


    Powered by Metrology 4.0 Software

    The advancement in metrology software design that the market has been waiting for...


    Talyrond 585H PRO Metrology 4.0 User Interface

    Cutting-edge technology

    Taylor Hobson’s advanced software enables dimensioning in accordance with part drawings and provides an exact reflection of the Part Co-ordinate System (PCS) delivering the final link in the manufacturing loop.

    Metrology 4.0 software is easy to use with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function delivers precise positioning and accurate measurement.


    Talyrond 585H PRO SMART Move and CAD Models

    SMART Move and CAD models

    A powerful utility that enables online and offline programming around a CAD model. Features include a stylus tip “flight path” enabling collision detection.

    The Metrology 4.0 visual display is an exact replica of the real instrument; seeing is believing. Measurements are made between pre-defined points or from points fed back from the analysis process. Improved accuracy and repeatability can be achieved via the unique feedback process.


    Talyrond 585H PRO Centre and Level

    Centre and Level - Completed in less than half the time

    Another first is the unique three-point centre and levelling method which provides a stable and high-load capability.

    Precise positional control combines with predefined alignment positions to produce the fastest centre and levelling device on the market.


    Talyrond 585H PRO Desktop Publishing

    Powerful Desktop Publishing

    The desktop publishing features are powerful and simple to use allowing customisation of result layouts and ensuring a more professional and personalised look to your brand.

    • Generate interactive reports and multi-page documents
    • Multiple documents can be displayed on screen, to compare results
    • Build a professional report and include corporate logos

    Talyrond 585H PRO Multiple Measurements

    One software platform, multiple disciplines

    • Roundness - Frictionless high precision air bearing spindle provides world leading roundness results
    • Surface Finish - High resolution gauge and low axis noise enables linear or circumferential surface roughness
    • Contour - Our patented calibration technique enables measurement of radii, angle, height, length, distance and more
    • Topography - A fully automated routine enabling 3D topography of cylindrical surfaces
