Talyvel 6 Electronic Levels

Taylor Hobson Talyvel6 Flatness, Straightness, Parallelism Measurement Instrument

Taylor Hobson’s Talyvel 6 wireless instrument / tool is used for straightness, level, twist, angle, parallelism and surface flatness measurement. Talyvel 6 can be used with the Taylor Hobson optical analysis software package (conforming to international standards BS817, DIN876, ISO8512) to measure the single axis straightness & twist on machine tool rails. This equipment can check level within 0.2 seconds accurately.

The dual axis straightness measurement can be inspection by Taylor Hobson Autocollimator.


  • Overview +

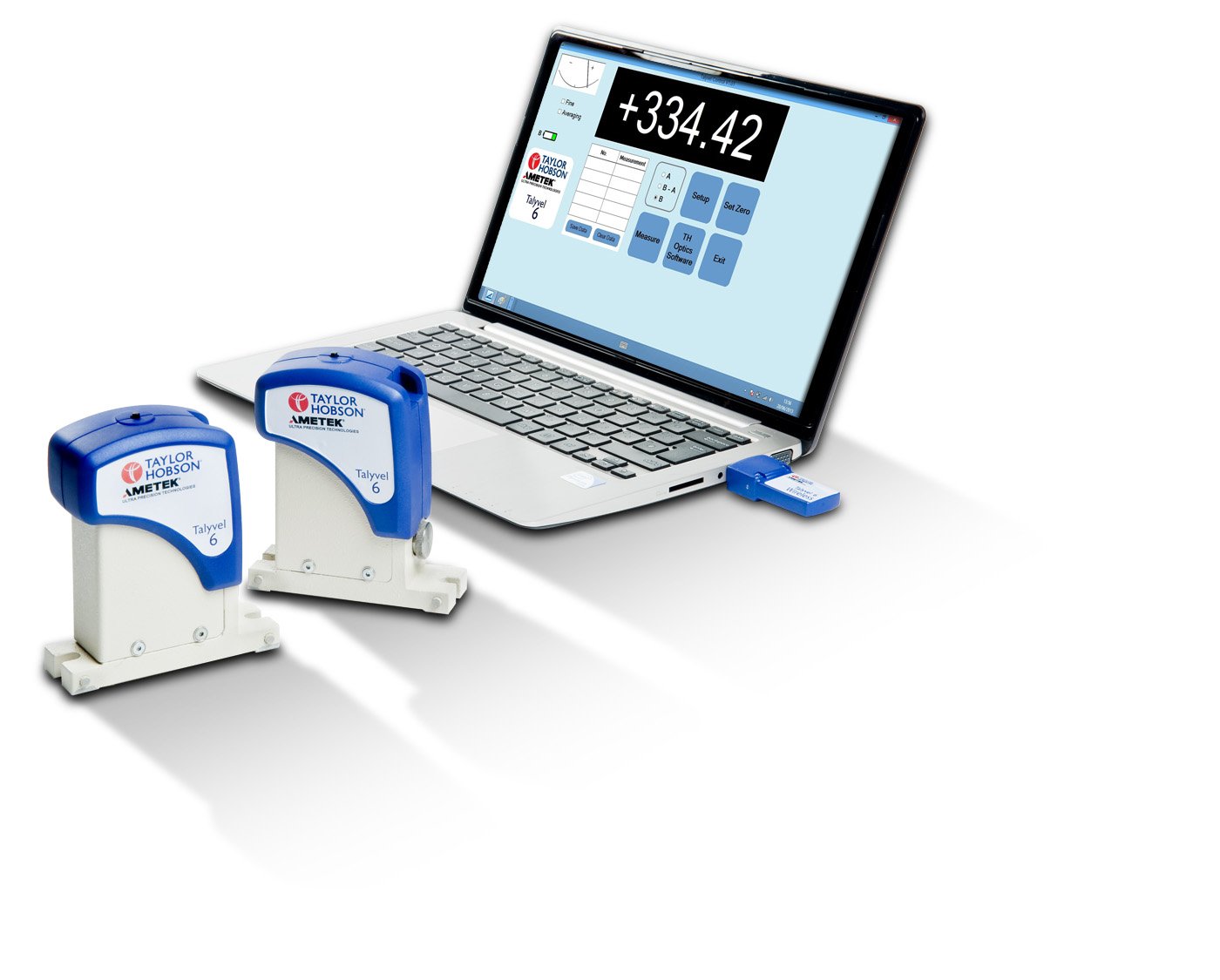

    Taylor Hobson's Talyvel Electronic Level systems provide versatile and precise measurement of angle, level, flatness and straightness. The Talyvel 6 uses a pendulum transducer and interfaces directly to a touchscreen computer to combine exceptionally high accuracy, stability and repeatability with fast response and operational convenience.

    Industry:

    Marine, Bearings, Civil engineering, Astronomical Telescopes.

    Applications of Talyvel 6:

    Flatness measurement of Granite and cast-iron Surface tables
    • Straightness, parallelism, squareness, twist, flatness measurement on machine tools rails.
    • Checking the level (the relative deflections in buildings) in the civil engineering and used in the production and assembly of precision machinery (machine tool bed level and to gravity)
    • Measuring the twist, alignment, parallelism in marine engineering industry


    Applications include straightness measurement of machine tool guide ways, flatness of surface tables or absolute level of structural supports, Talyvel 6 can also function as a comparator to detect departures from a preset level and non level attitude.

    • Optional Differential system for comparative measurement
    • Wireless dongle option with a range of up to 10 metres
    • High stable pendulum transducers with quick adjustment to gravity or absolute level
    • High resolution and accuracy of 0.2 secs over central range
    • Reading in arc seconds or gradient
    • Software in various languages including Japanese and Chinese
